Feature

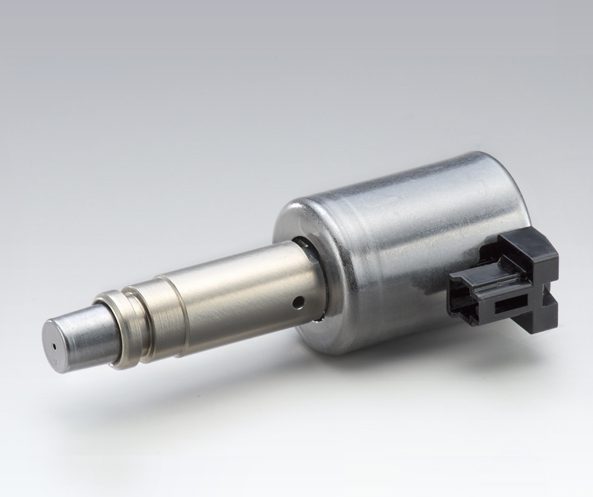

These solenoid valves are lightweight and compact due to an integrally molded connector, bobbin and valve seat made of plastic.
A superb rubber damper used in the valve section reduces operating noise. (Duty-cycle controlled)
Bleed valves offer optimum valve sensitivity and highly stable control pressure by selecting a spool or poppet system according to valve specification requirements. (Linear 2-port valve)
The linear three-way valve performs stable high-pressure control by adopting a spool system and Eagle Industry’s proprietary movable part damping structure. (Linear 3-port valve).
Voltage
12 V
Coil resistance
On-off:14 to 18 Ω Duty-cycle:11 to 13 Ω Linear:4 to 7 Ω
Flow rate
3-port (Linear):5 L/min (at 0.7 MPa)
Temperature
-40 to 150°C
Control pressure
Linear(3-port):1 to 2 MPa
Thermal shock durability
-40 & 165°C for 50 to 500 cycles
Vibration durability
100 to 250 m/s2 for 107 cycles
High-temperature operation endurance
On-off:120ºC for 106 cycles
Duty-cycle:120ºC for 3 ×108 cycles
Linear:120ºC for 4000 h
